FUCHS Single-point Automatic Lubricators

FUCHS single-point lubrication systems are devices that can be programmed to supply lubricant automatically. In most cases, the equipment can continue to operate during lubricant application, which reduces downtime.

Main benefits:

  • Reduced maintenance costs
  • Improved labour efficiency and cost savings
  • Greater safety for personnel during maintenance tasks
  • Reduced equipment downtime
  • Longer equipment service life
  • Guaranteed optimal and homogeneous lubrication
  • Reliable lubrication while eliminating human error in manual lubrication
  • Reduced waste

To achieve all these benefits, FUCHS offers its customers a wide range of FUCHS lubricating greases supplied in STAR VARIO BLUETOOTH, STAR CONTROL and FLEX automatic lubricators.


FUCHS STAR VARIO BLUETOOTH

FUCHS STAR VARIO BLUETOOTH operates fully automatically with a high-precision discharge, regardless of temperature or back pressure.

The system consists of an electromechanical drive, a grease cartridge (LC) with a capacity of 60 cm³, 120 cm³, 250 cm³ or 500 cm³ and a battery pack.

The desired discharge time and LC size are easily selected using the push button and are instantly shown on the LCD display. The current operating status is shown by a LED light (green/red), which is always visible even from a distance, as well as on the LCD display.

This single-point lubricator can be controlled remotely via Bluetooth, using mobile device app.

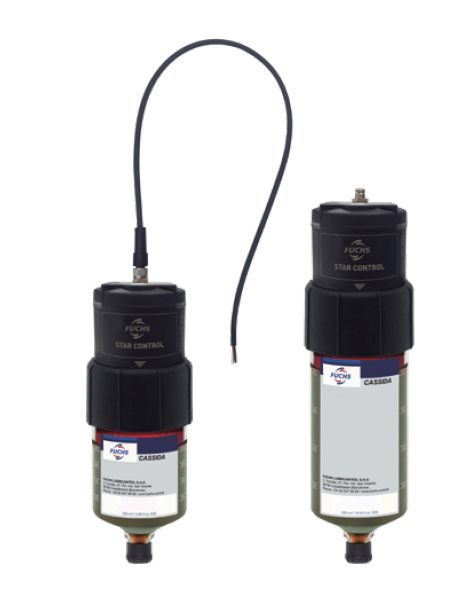

FUCHS STAR CONTROL

The main difference between the FUCHS STAR CONTROL and the STAR VARIO BLUETOOTH models is that the drive is powered externally via a connection cable and therefore no batteries are required.

FUCHS STAR CONTROL also has an electromagnetic drive with two built-in operating modes: TIME and IMPULSE.

In TIME mode, FUCHS STAR CONTROL applies lubrication according to the programmed discharge time (1, 2, 3 ... 12 months).

In IMPULSE mode, the device applies the exact amount of lubricant when power is detected on starting up the machinery. This mode is particularly recommended for machinery that operates intermittently.

A further advantage is that service status can be transmitted and assessed in a PLC.

Cartridges FUCHS STAR LC

FUCHS STAR LC 60

Description: 60 cm3 replacement Lubricant Cartridge (LC)
Items included: STAR LC 60
Sales format: Box of 10 units

FUCHS STAR LC 120

Description: 120 cm3 replacement Lubricant Cartridge (LC)
Items included: STAR LC 120
Sales format: Box of 10 units

FUCHS STAR LC 250

Description: 250 cm3 replacement Lubricant Cartridge (LC)
Items included: STAR LC 250
Sales format: Box of 10 units

FUCHS STAR VARIO accessories

Drive

Description: Geared motor. 5-year service life
Items included: STAR VARIO DRIVE (motor)
Sales format: Unit


Support flange

Description: Lubricator support for the first installation. 5-year service life
Items included: Support flange
Sales format: Unit

Battery pack

Description: Battery pack for power supply in CASSIDA STAR VARIO BLUETOOTH devices. Change with each lubricant cartridge replacement (LC).
Sales format: Pack of 3 batteries

Cable for STAR CONTROL

Description: 4-wire connection cable for CASSIDA STAR CONTROL devices.
Sales format: 1 pc.

> Back




FUCHS FLEX

FUCHS FLEX is a compact, ready-to-use lubrication system supplied as a complete unit. It can be used in a wide range of applications at temperatures between -20 °C and +60 °C. The discharge time is freely selectable between 1 and 12 months.
The required pressure is produced by means of an electronically controlled chemical reaction. Fresh lubricant is continuously supplied to the lubrication point during the selected discharge time. FUCHS FLEX is available in 60 cm³ and 125 cm³ sizes.

FUCHS FLEX 60

Description: 60 cm3 automatic lubrication system
Items included: FUCHS FLEX 60
Sales format: Box of 10 units

FUCHS FLEX 125

Description: 125 cm3 automatic lubrication system
Items included: FUCHS FLEX 125
Sales format: Box of 10 units

>  Back




A carefully selected range of lubricants for industrial maintenance

Equipment & manchinery always ready for opertation



ProductLubricantLubrication SystemCartridge size (cm3)
GLEITMO WSP 5040 FLEX 125GLEITMO WSP 5040FLEX125
LAGERMEISTER XXL FLEX 125LAGERMEISTER XXLFLEX125
LAGERMEISTER XXL STAR LC 120 | 250LAGERMEISTER XXLSTAR120 | 250
RENOLIN CHAINLUBE HT 5020 FLEX 125RENOLIN CHAINLUBE HT 5020FLEX 125
RENOLIT CSX 15 FLEX 125RENOLIT CSX 15FLEX125
RENOLIT H 443 HD 88 FLEX 60 | 125RENOLIT H 443 HD 88FLEX60 |125
RENOLIT H 443 HD 88 STAR LC 60 | 120RENOLIT H 443 HD 88STAR 60 | 120
RENOLIT LX 2 FLEX 125RENOLIT LX 2FLEX125
RENOLIT STCA 2 FLEX 125RENOLIT STCA 2 FLEX125
URETHYN E 2 FLEX 125URETHYN E 2FLEX125
URETHYN E 2 STAR LC 60 | 120 URETHYN E 2STAR 60 | 120

>  Back
